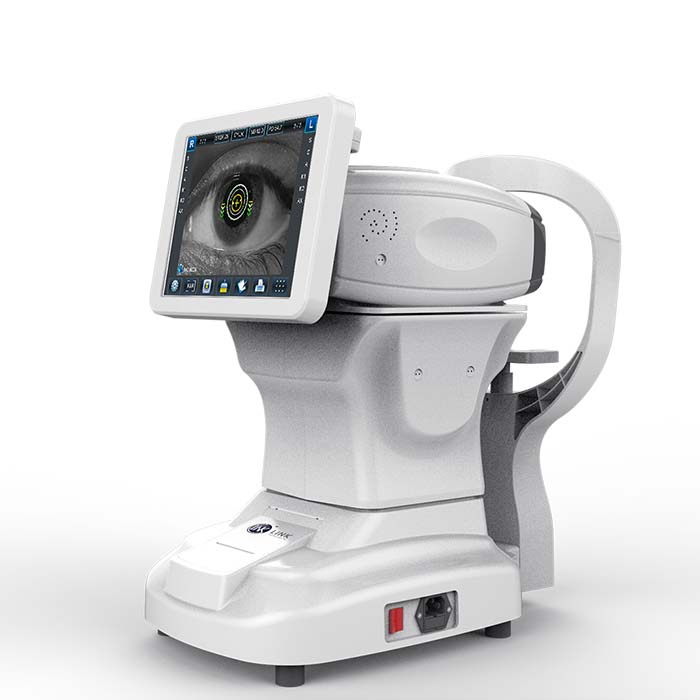

AR-1 ARK-1 China Auto Refractometer with keratometer 3D tracking 10.4" touch screen

5 0 Reviews
  • AR-1 ARK-1

  • REDSUN

  • 9018500000

Availability:
Quantity:
sharethis sharing button

Auto refratometer

AR-1  Without keratometer function

ARK-1 with keratomter function

Main Feature:

10.4" Color and Touch screen , more easy operate.

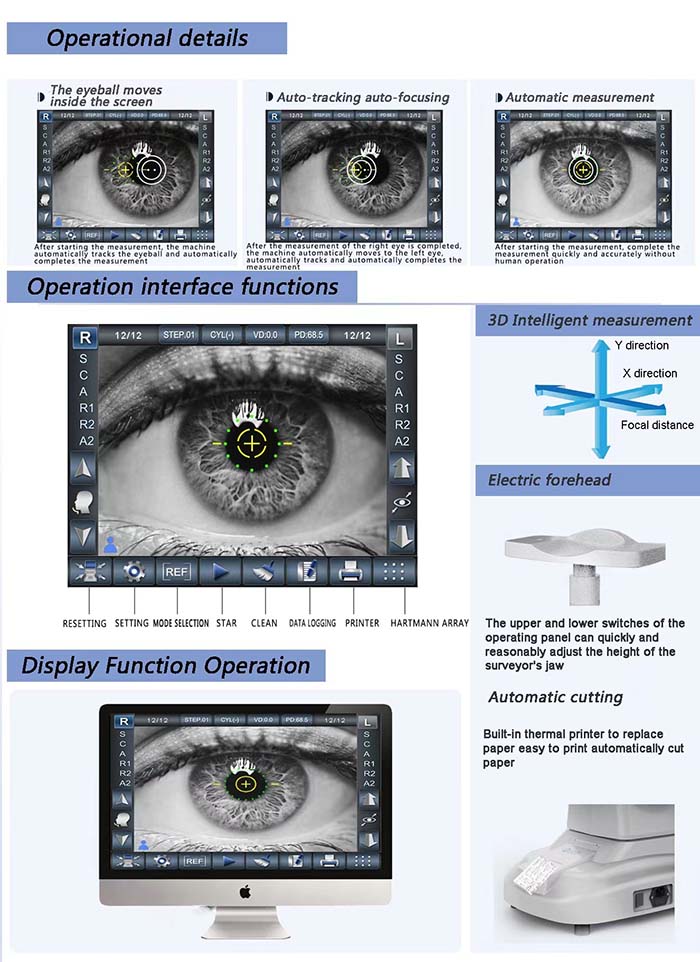

3D tracking , X-Y-Z , full automatic .

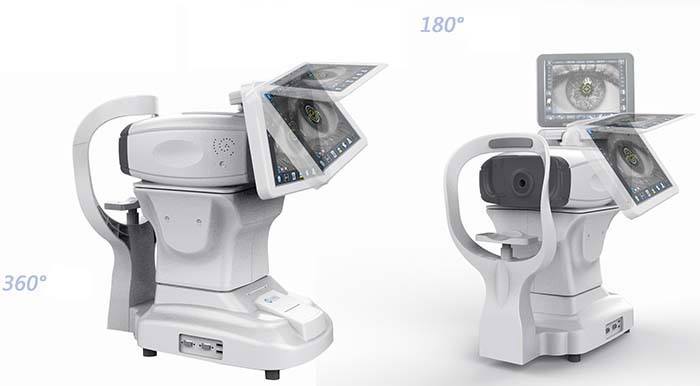

Montor 360 degree rotating

With keratometer

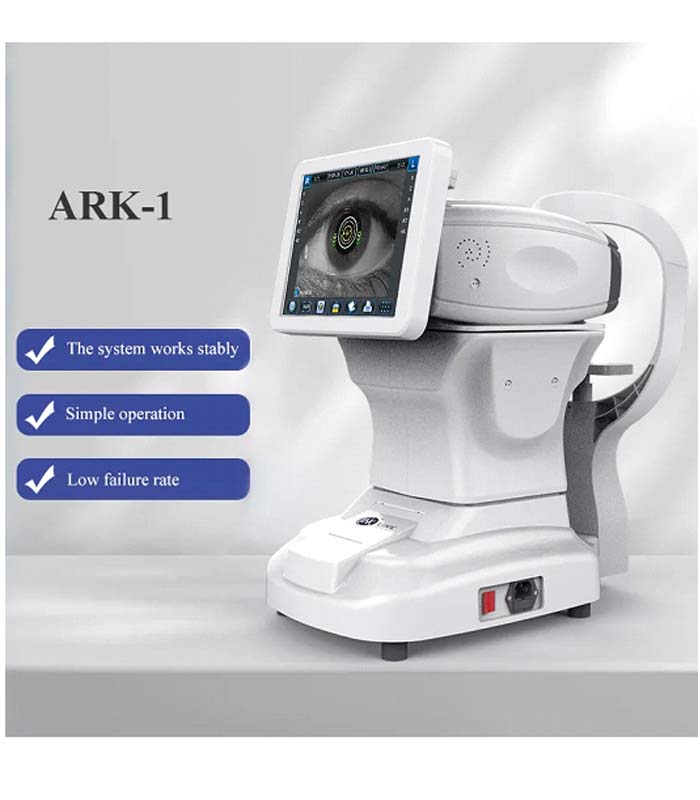

ARK-1

ARK-1-1ARK-1-2ARK-1-5



Technical Data :


Product name
ARK-1 auto Refractometer
Measuring range of vertex power
-25D ~ +25D
Measuring range of cylinder degree (absolute value)
-10D ~ +10D
Cylinder degree
0.00D ~ ±10.00D (0.06, 0.12, 0.25 units)
Measuring range of cylinder axis
0° ~ 180°
Corneal diameter
1.0 ~ 12.00 mm
Interpupillary distance
10 ~ 85 mm
Minimum pupil diameter
1.0 mm
Measurement completion time
<0.5 seconds
Measuring light energy
<30 uw (to ensure measurement safety)
Corneal curvature radius
5.0 ~ 10.0 mm (0.01 mm accuracy)
Corneal refractive power
33.00D ~ 67.00D (when the angular equivalent refractive power is 1.3375),
Corneal astigmatism
0.00D ~ ±10.00D (0.12D/0.25D unit)
Stored data
10 measurements for each left and right
Axis position
1° ~ 180° 10.0
Data transmission
RS32\Bluetooth, WIFI, etc. transmission
Visual target
oriented cloud map
Display
10.4-inch TFT touch screen (adjustable viewing angle)
Printer
57 mm thermal printer, automatic paper cutting
Power supply
AC 100-250 V, 50/60 Hz, wide power supply
Net weight
22 kg
Gross weight
26.5 kg
Packing size
(length) 720 mm x (width) 400 mm x (height) 600 mm




Kr8900 Ophthalmic Equipment Auto Ref/Keratometer
