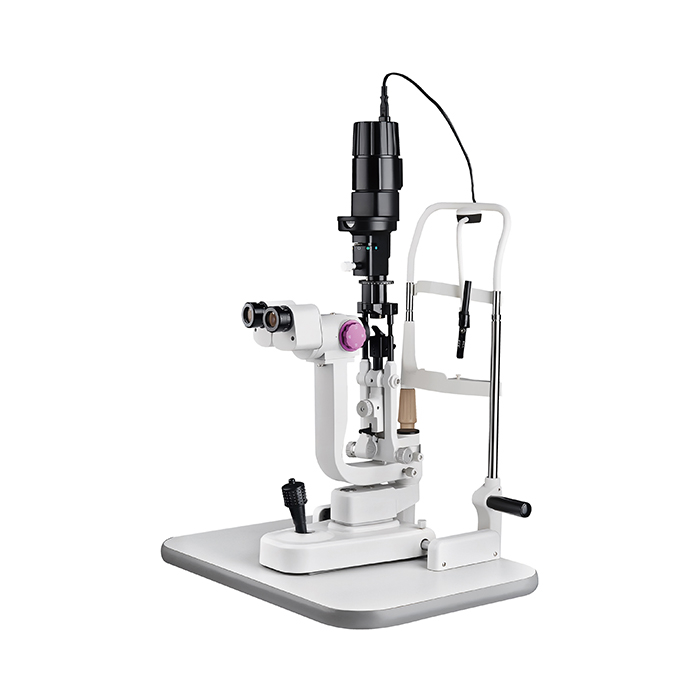

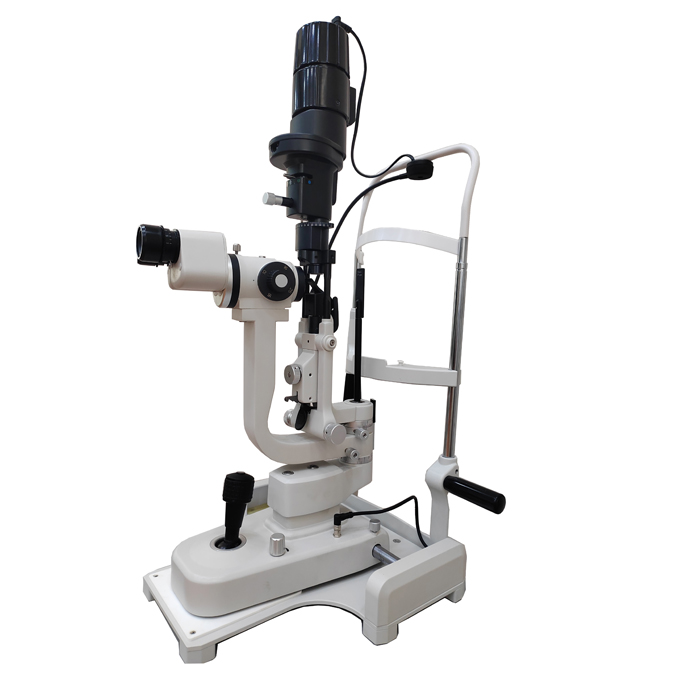

BL-88T Ophthalmic Equipment Biomicroscope Slit Lamp With 3 steps led bulb

SLIT LAMP
MODEL:BL-88T

Technical Data
LED Lamp ,Long life

There are iphone or Sumsung mobile adapter optional, can take images by mobile.

BL-88T
Type Parallel Galilean
Eyepiece 12.5X
Total Magnification 10X, 16X, 25X
Diameter of Visual Field Φ 23, Φ 14, Φ 8.7mm
Diopter Adjustment +5D--5D
Slit Width 0mm-14mm continuously adjustable
Slit Height 1mm-14mm continuously adjustable
Aperture Diameter Φ 14, Φ 10, Φ 5, Φ 3, Φ 2, Φ 1, Φ 0.2mm

Slit Angle 0° -180°
Illumination Tilting 0° , 5° , 10° , 15° , 20°
Filter Heat absorption, grey, redfree (green), cobalt blue
Lamp: led Lamp
Longitudinal movement: 90mm
Lateral movement: 100mm
Vertical movement: 30mm
Fine base movement: 15mm
Input Voltage 110V/220V 60/50Hz
Input Power 60VA
Illumination Bulb 12V/50W halogen bulb, LED Lamp optional
Fixation Red LED
