FR-710 FKR-710
REDSUN
9018500000
Availability: | |
---|---|
Quantity: | |

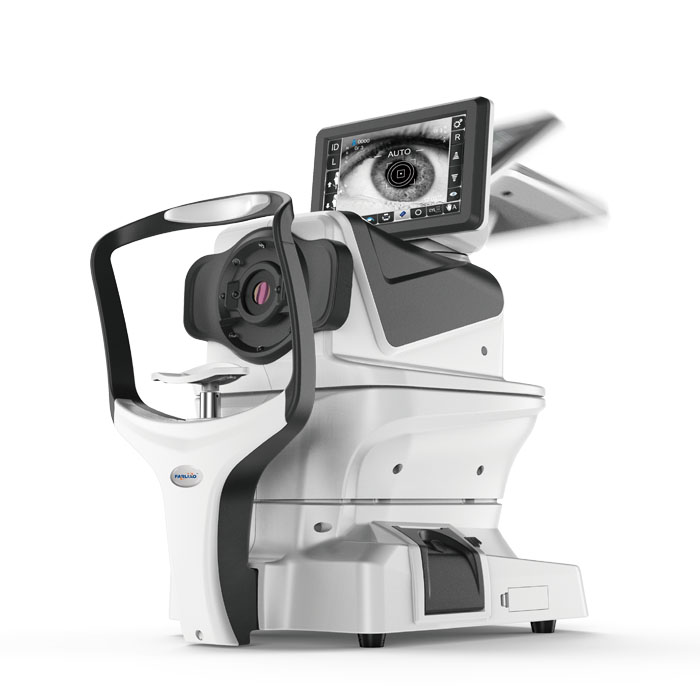

Auto refratometer
FR-710 Without keratometer function
FKR-710 with keratomter function
Main Feature:
1.Full automatic machine, only power on , put your head on chinrest, press any area on the screen,
it will be automatic adjust the chinrest , the machine position , and automatic meausre, automatic print and cut paper .
All the measure within 20" finishing.
2.9" color and touch screen , 360° rotating screen .
3.R/L Fully automated measurement
4. Motorized main boday horizontal and vertical moving automatic
5.Motorized joystick automatic
6. IOL function , can measure the eye did cataract surgical before,
Technical Data :
Configuration | Specification | |
Measurement mode | K&R mode: | Diopter and corneal curvature measurements |
REF mode: | Diopter measurement | |
KRT mode: | Corneal curvature measurement | |
Diopter measurment | Vertex distance (VD) | 0mm、12.0mm、13.75mm、15.00mm |
Spherical refractive power | -25.00D~+25.00D | |
Cylindrical refractive power | -10D~10D | |
Direction of astigmatic axis | 0°~180° | |
PD measurement | 10mm~85mm | |
Corneal measurement | Minimum pupil diameter | Φ2.0mm |
Corneal curvature radius | 5mm~10mm | |
Direction of corneal astigmatic axis | 0°~180° | |
Cornea diameter | 2.0mm~12.0mm | |
Product specifications | Monitor | 9 inch Touch LCD monitor |
printer | Auto-Cut Data Paper | |
Saving mode | 1/5/10/20/40 minutes automatic screensaver | |
Power supply | AC220V; 50HZ 75VA | |
Dimensions/Weight | 300(W)*450(D)*500-530(H)mm/20Kg |
Auto refratometer
FR-710 Without keratometer function
FKR-710 with keratomter function
Main Feature:
1.Full automatic machine, only power on , put your head on chinrest, press any area on the screen,
it will be automatic adjust the chinrest , the machine position , and automatic meausre, automatic print and cut paper .
All the measure within 20" finishing.
2.9" color and touch screen , 360° rotating screen .
3.R/L Fully automated measurement
4. Motorized main boday horizontal and vertical moving automatic
5.Motorized joystick automatic
6. IOL function , can measure the eye did cataract surgical before,
Technical Data :
Configuration | Specification | |
Measurement mode | K&R mode: | Diopter and corneal curvature measurements |
REF mode: | Diopter measurement | |
KRT mode: | Corneal curvature measurement | |
Diopter measurment | Vertex distance (VD) | 0mm、12.0mm、13.75mm、15.00mm |
Spherical refractive power | -25.00D~+25.00D | |
Cylindrical refractive power | -10D~10D | |
Direction of astigmatic axis | 0°~180° | |
PD measurement | 10mm~85mm | |
Corneal measurement | Minimum pupil diameter | Φ2.0mm |
Corneal curvature radius | 5mm~10mm | |
Direction of corneal astigmatic axis | 0°~180° | |
Cornea diameter | 2.0mm~12.0mm | |
Product specifications | Monitor | 9 inch Touch LCD monitor |
printer | Auto-Cut Data Paper | |
Saving mode | 1/5/10/20/40 minutes automatic screensaver | |
Power supply | AC220V; 50HZ 75VA | |
Dimensions/Weight | 300(W)*450(D)*500-530(H)mm/20Kg |
