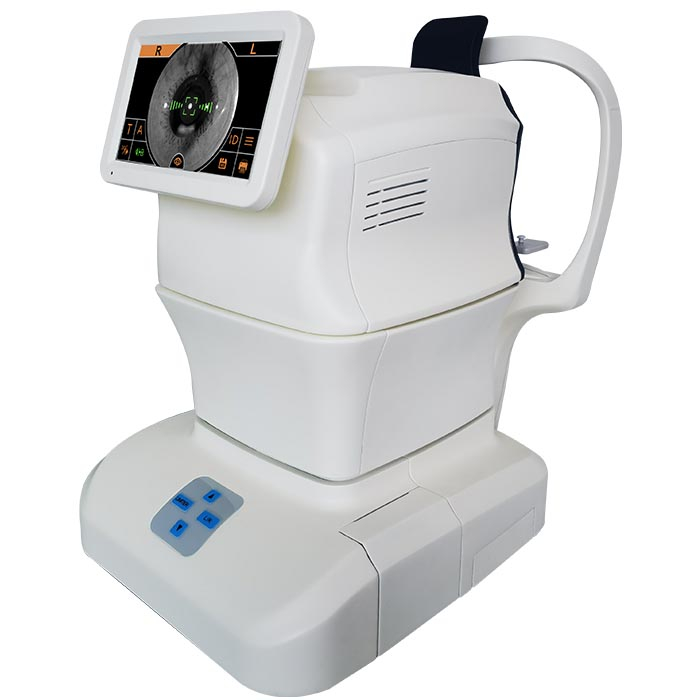

Non Contact Tonometer
SK-5000A tonometer without pachymeter
SK-5000B with pachymeter function
Feature:
1. 7” Touch screen , can be turned 180°up and down, 60º left and right .
2. 3D tracking, motorized chinrest , full automatic
Finished one eye will automatic move to another eye , till finish , do not need doctor do anything,
Auto print .
3. The accurate corneal thickness measurement function is provided to provide intraocular pressure. Compensation value and automatically calibrate the intraocular pressure value
4. The machine can be connected to the database system through DICOM3.0 to archive and read the dta , which conforms to new era hospital standard
Technical Data
Display | 7” 1024*600 color touch screen, support up and down 180°,60º left and right |
Fixation lamp | 1 internal fixation lamp (green LED); 2.external fixation lamps |
Measuring head moving range | Uo and down stroke :45mm , left and right stroke:90mm, front and back stroke:40mm |
Lifting range of lower jaw drag | 68mm |
Working distance | 11mm(calculated from the front of nozzle) |
Measurement accuracy | 1mm Hg(0.133Kpa) |
Measuring range | 0-60mmHg (0-8kpa)(including free switching between 30/60mmHg |
Power supply | AC100-240V, 50-60Hz |
Ambient Temperature | 50℃ |
Scope of operation | 16mm x10mm |
printer | Built-in thermal printer |
Data storage | Internal memory card+optional external USB memory |
Networking | DICOM3.0 |
Measurement mode | Full automatic/automatic/manual |
Operating system | Embedded system |
Mobile platform | Fully automatic platform/manual platform |
Data input and output | Input:USB, output:LAN/RS232C |
Focusing mode | 3D full auto focus /manual focus |
Jet detection | After power on , check whether the measuring system of the instrument works normally |
Safety limit | Support |
Intraocular pressure measurement | Each eye was measured three times continuously, and the average value was calculated |
Normal intraocular pressure range :10-21mmHg(1.33kpa-2.80kpa) | |
Normal corneal thickness :about 550um | |
Full automatic measurement | Press the measurement button to complete the intraocular pressure test automatically |
24 hour dynamic intraocular pressure measurement | It can monitor intracular pressure dynamically 24 hours , and print , it on the same report sheet with intraocular pressure data |
Printing | Data can be printed directly after measurement |
storage | 10 sts of measurement data can be stored |
Data export | Can be exported to PDF or JPG format |
Size and weight | 500*300*500 mm <25kg |
