VT-800
SUPORE
9018500000
| Quantity: | |
|---|---|

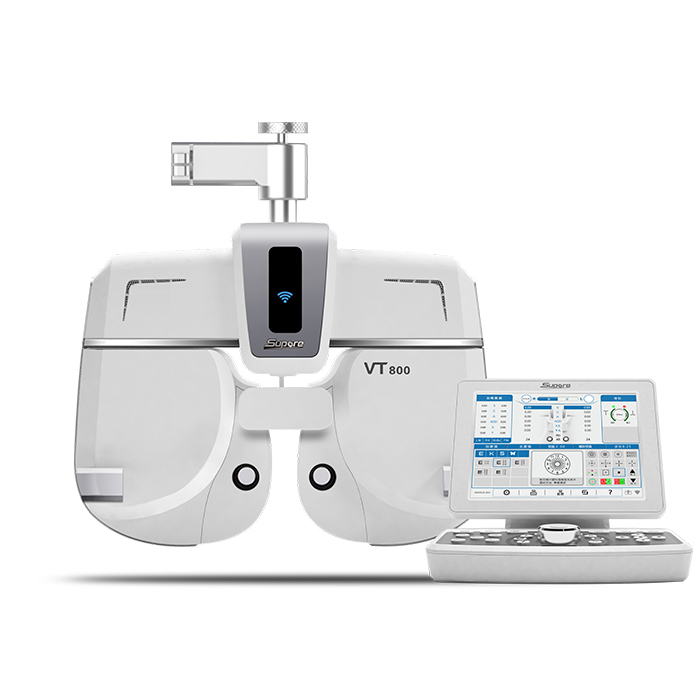

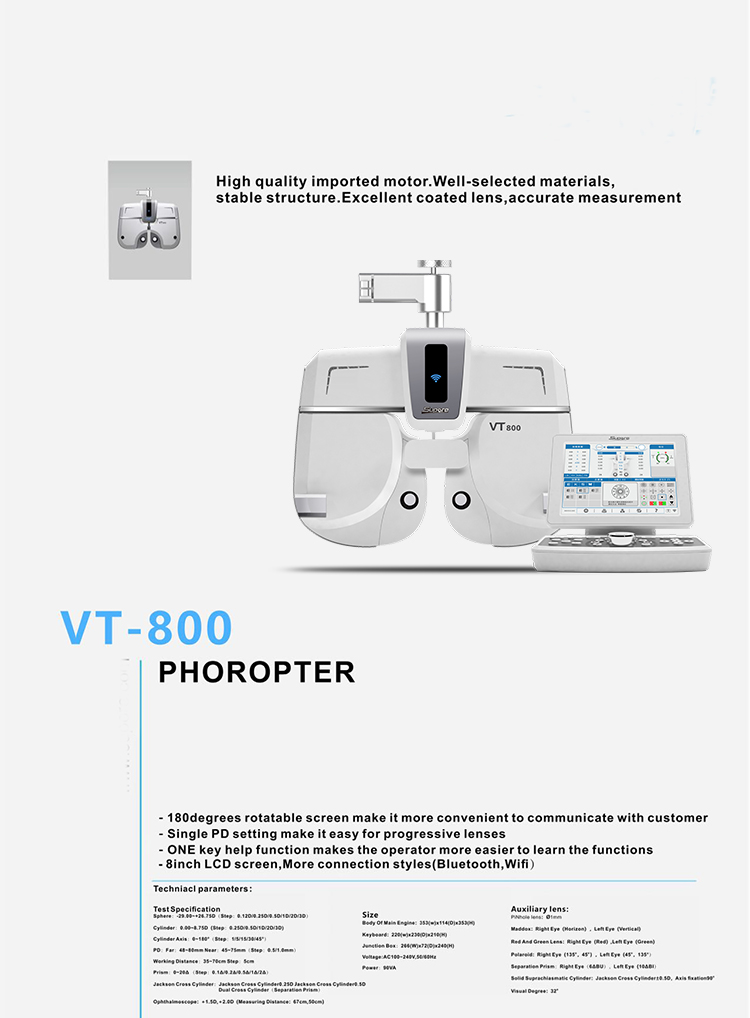

Auto phoropter
VT-800
Characteristies:
180 degrees rotatable screen make it more convenient to communicate with sustomer
Single PD setting make it easy for progressive lenses
One key help function makes the operator more easier to learn the functions
8 inch LCD screen, more connection sysles (blue tooth, wifi)
Technical Data
Sphere | -29.00~+26.75 D(step:0. 12D/0.25D/0.5D/1D/2D/3D) |
Cylinder | 0.00~8.75D (step:0.25D/0.5D/1D/2D/3D) |
Cylinder axis | 0~180 degree (step : 1/5/15/30/45 degree) |
PD: Far | 48~80mm Near : 45~75mm (step:0.5/1 .0mm) |
Working distance | 35~70cm (step: 5 cm) |
Prism | 0~20 (step 0.1/0.2/0.50/1/2) |
Jackson cross cylinder | Jackson cross cylinder 0.25D Jackson cross clinder 0.50D |
Dual cross cylinder | (separation prism) |
Ophthalmoscope | +1.5D,+2.0D( measuring distance 67cm, 50cm) |
Size and weight | |
Body of main engine: | 353(W) x 8114(D) x 353mm, 3.5kg |
Keyboard | 220(W)x 230(D)x 210(H)mm , 1.5kg |
Junction box | 266(W) x 72(D) x 240(H)mm, 1.3kg |
Voltage | AC 100~240V, 50/60Hz |
Power | 90VA |
Auxiliary lens | |
Pinhole lens | 1mm |
Maddox | Right eye (horizon), left eye (vertical) Red and green lens Right eye(red), left eye (green) |
Polaroid | Right eye(135 degree, 45 degree), left eye (45degree, 135 degree ) |
Separation prism | Right eye(6, BU), Left eye(10, Bl) |
Solid suprachiasmatic cylinder | Jackson cross cylinder +-0.50D |
Axis fixation | 90 Degree |
Visual degree | 32 Degree |
