LM-260
REDSUN
| Quantity: | |
|---|---|

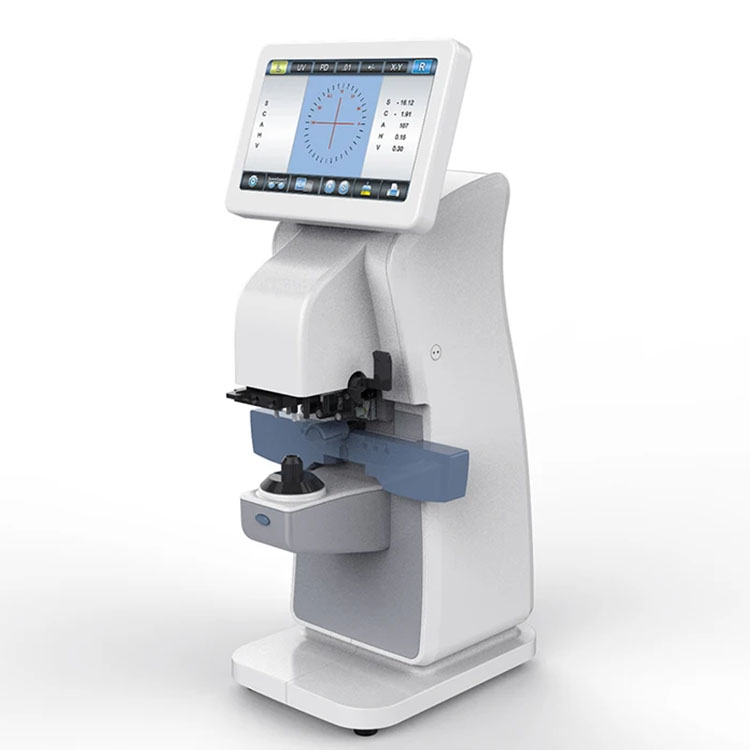

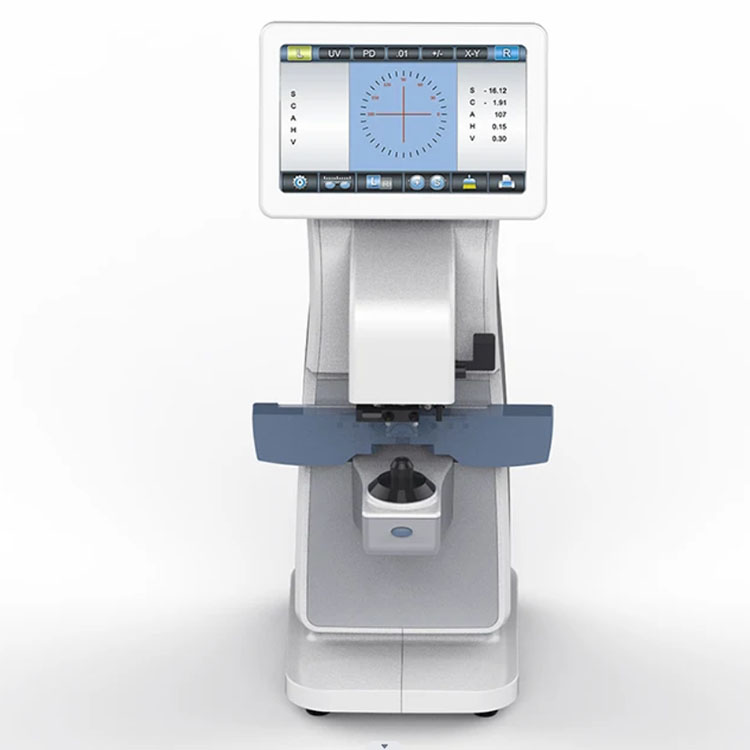

Auto lensmeter
LM-260

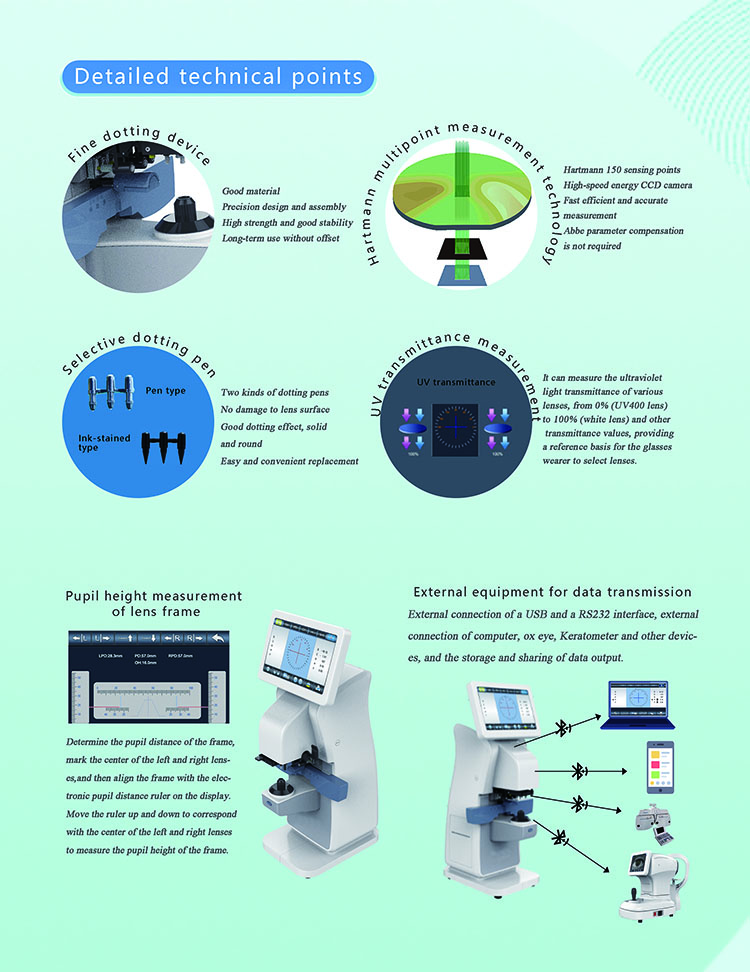

Features
7" Color and touch screen
Streamlined, faddish, abundant and atmospheric design
Green led light source ABBE compesation no required
Food-grade ABS material case, zero failure rate quality standard
Rapidly and automatially determine and measure the progressive lens in high precision
Urgraded hartmann intelligent measurement technology, faster , more accurate and more stable
Measure blue light transmittance
can measure frame PD PH Data .
Specifications
Sphere | -35.00D-+35.OOD |
Axis | 0°-180° (1°step) |
CYLINDER | 0 - ±10D 0.01/0.06/0.25D steps |
prism degree | 0 - 15 Δ 0.01Δ steps |
ADD | 0 - ±10D 0.01/0.06/0.25D steps |
Cylinder | +, +/-, - |
Prism | X-Y, Cartesian Coordinates H:I. O.V .U.D P-B: Polar Coordinates mm: mm expression |
Contact lens | Soft/hard |
Measuring Mode | Single/progressive/automatic recognition |
Diameter of Lens | φ20-φ100mm |
PD | 40~90mm, 0.5mm steps |
Speed of measurement | 0.1s |
Display | TFT LCD (7.0") 640*480 |
Printer | Thermal Printer |
Dimension | 180(L) * 255(W) * 455 (H) mm |
Package | 620(L) * 390(W) * 390 (H) mm |
Weight | About 12kgs |
Power Supply | 100~240V 50~60HZ |
