HSL-600
REDSUN
9018900000
| Quantity: | |
|---|---|

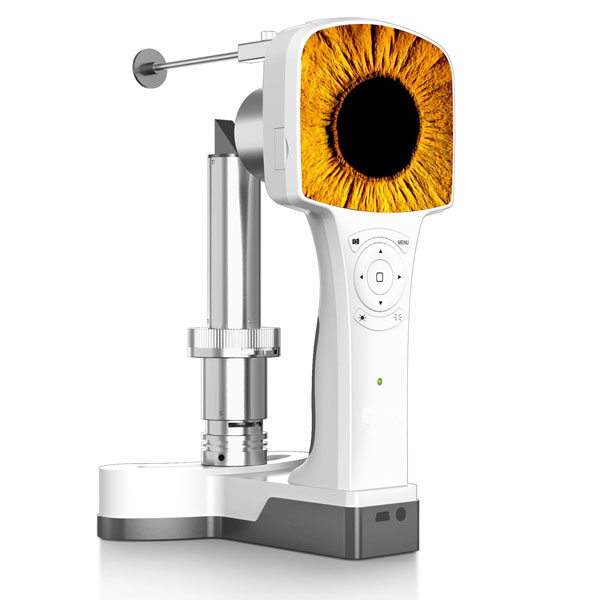

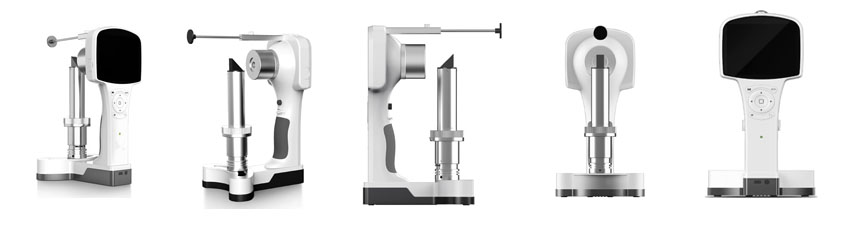

Portable digital slit lamp
HSL-600
Features and advantages
l Images real-time display, 10 Times magnification
l High definition imaging image resolution , 2MP
l Micro SD memory card up to 8GB
l USB and WiFiconnection
l Low weight 600g , movable and portable
l Rechargeable battery provides up to more than 4 hours of continuous operation.
l 3.5 inch screen
l manual focus ,White LED illumination
l With built-in Android APP inside . do not need other mobile or laptop
With software , can install on laptop, slit lamp connect to mobile or laptop wifi
Product overview
It is a portable medical camera for anterior segment imaging, diagnosis and especially for anterior disease screening. It's compact, easy to obtain high definition images. It can be conveniently applied to rapid screening, out diagnosis, bedside diagnosis and remote medical treatment,etc.
Performance and Parameters
Model | HSL-600 |
Magnification | 10X |
Refractive compensation | -7D to +7D |
Working distance | 80mm |
Slit width | 0-10mm continuously adjustable |
Aperture diameter | 1mm,5mm, 10mm, 14mm |
Filter | Heat-absorption,Gray, Red-free, Cobalt blue |
Light source | White LED |
Image resolution | 2MP |
Focus Mode | manual |
Screen | 3.5” screen |
Storage | 16GB MicroSD card |
Power supply | 3.7VLithium Battery 3400mAh |
Interface | Mini USB/Wifi/BT/4G |
N. Weight | 600G |
G. Weight | 3kg |
Packing size | 400mm*200mm*230mm |
Slit lamp base optional
