COT-L900
REDSUN
Availability: | |
---|---|
Quantity: | |

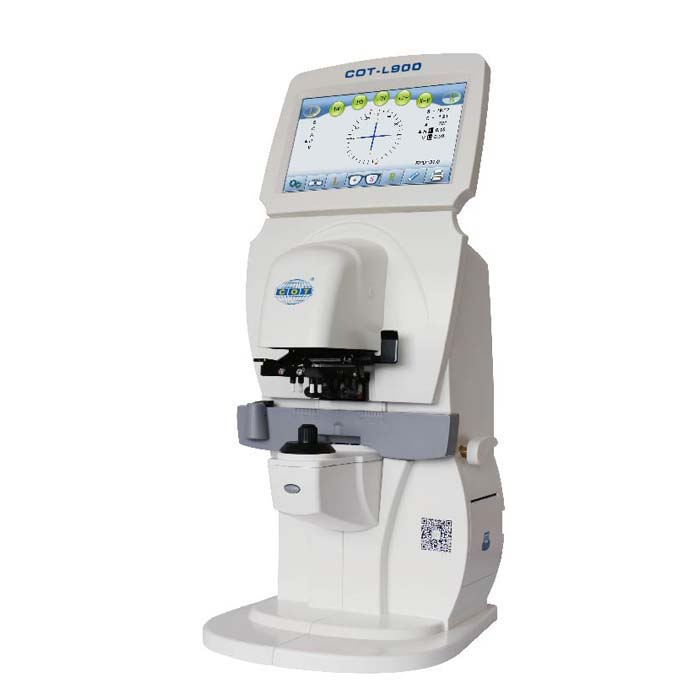

Auto lensmeter
COT-L900
Feature

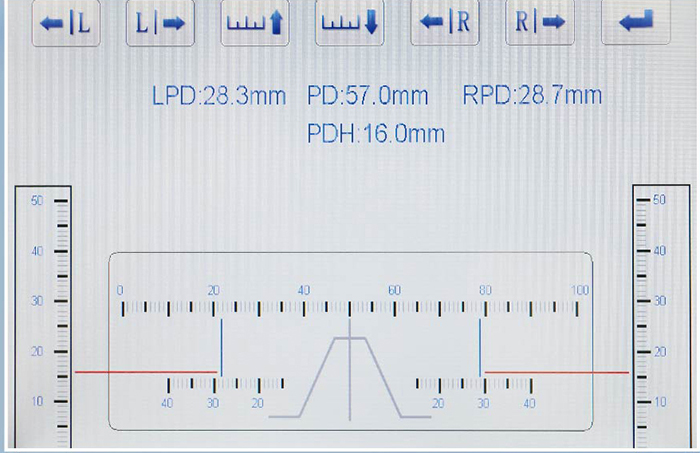

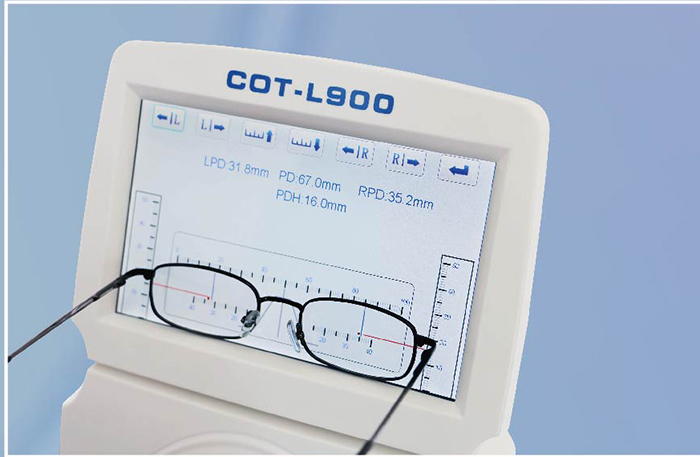

1.Measurement of PD , PH, and PCL(progressive channel Length).

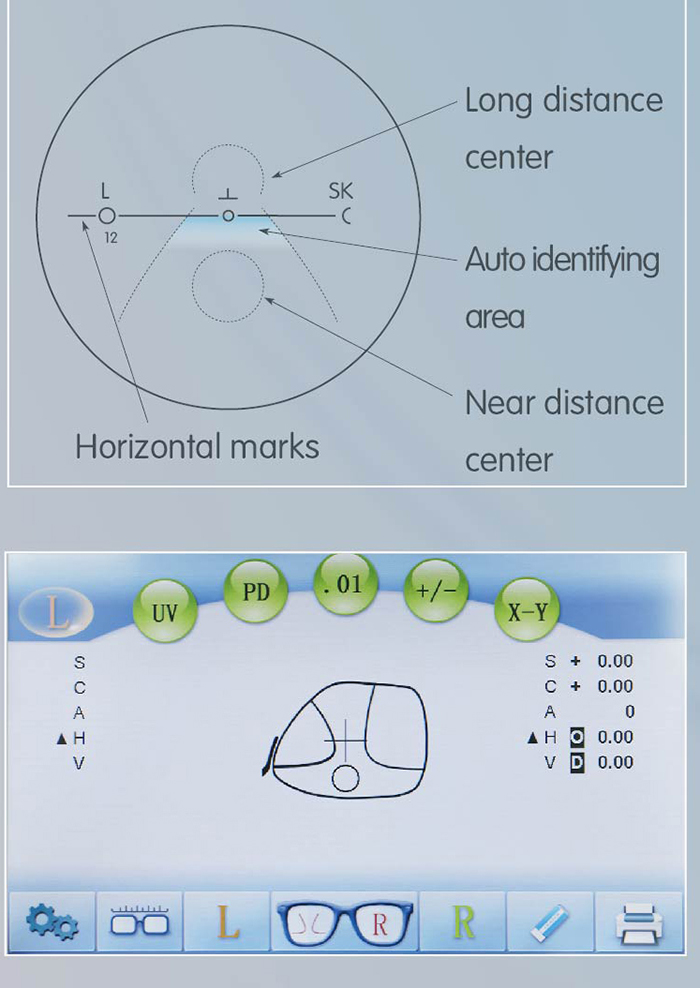

2.Measure progressive lens fast

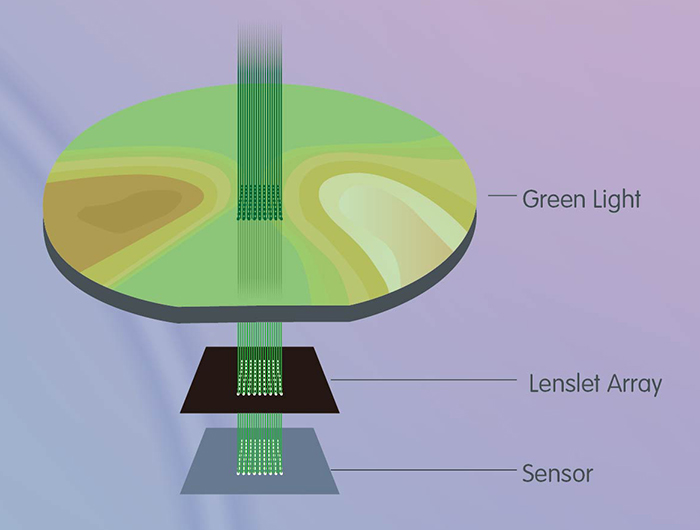

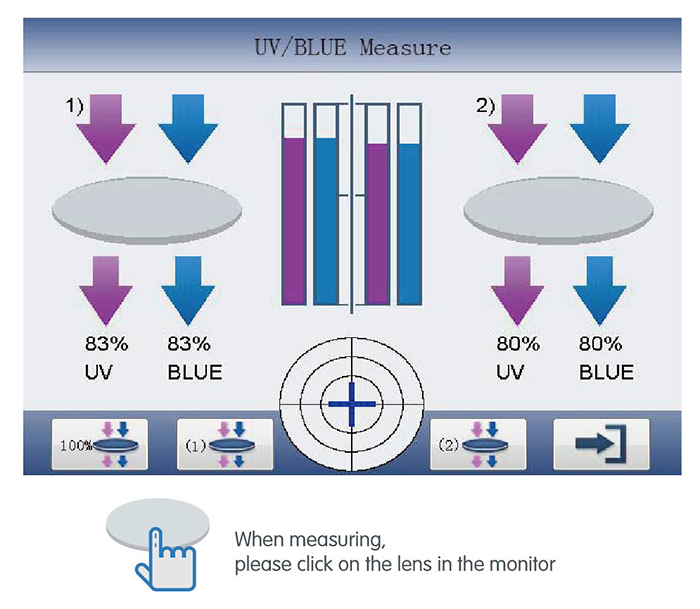

3.The wavelength of UV and green light can be measured simultaneously ..
4. Bluetooth, RS232 serial port, USB and WIFI ,4 forms of data communication
5. Better performance .Finer marking pens and lens holder . Magnetic and stable sliding nosepiece .
Technical Data
Sphere | --35.00D-+35.OOD |
Axis | 0°-180° (1°step) |
CYLINDER | 0 - ±10D 0.01/0.06/0.25D steps |
prism degree | 0 - 15 Δ 0.01Δ steps |
ADD | 0 - ±10D 0.01/0.06/0.25D steps |
Cylinder | +, +/-, - |
Prism | X-Y, Cartesian Coordinates H:I. O.V .U.D P-B: Polar Coordinates mm: mm expression |
Contact lens | Soft/hard |
Measuring Mode | Single/progressive/automatic recognition |
Diameter of Lens | φ10-φ100mm |
PD | 40~90mm, 0.5mm steps |
Speed of measurement | 0.1s |
Display | TFT LCD (7.0") 640*480 |
Printer | Thermal Printer |
Dimension | 180(L) * 255(W) * 455 (H) mm |
Package | 620(L) * 390(W) * 390 (H) mm |
Weight | About 12kgs |
Power Supply | 100~240V 50~60HZ |
Auto lensmeter
COT-L900
Feature
1.Measurement of PD , PH, and PCL(progressive channel Length).
2.Measure progressive lens fast
3.The wavelength of UV and green light can be measured simultaneously ..
4. Bluetooth, RS232 serial port, USB and WIFI ,4 forms of data communication
5. Better performance .Finer marking pens and lens holder . Magnetic and stable sliding nosepiece .
Technical Data
Sphere | --35.00D-+35.OOD |
Axis | 0°-180° (1°step) |
CYLINDER | 0 - ±10D 0.01/0.06/0.25D steps |
prism degree | 0 - 15 Δ 0.01Δ steps |
ADD | 0 - ±10D 0.01/0.06/0.25D steps |
Cylinder | +, +/-, - |
Prism | X-Y, Cartesian Coordinates H:I. O.V .U.D P-B: Polar Coordinates mm: mm expression |
Contact lens | Soft/hard |
Measuring Mode | Single/progressive/automatic recognition |
Diameter of Lens | φ10-φ100mm |
PD | 40~90mm, 0.5mm steps |
Speed of measurement | 0.1s |
Display | TFT LCD (7.0") 640*480 |
Printer | Thermal Printer |
Dimension | 180(L) * 255(W) * 455 (H) mm |
Package | 620(L) * 390(W) * 390 (H) mm |
Weight | About 12kgs |
Power Supply | 100~240V 50~60HZ |
