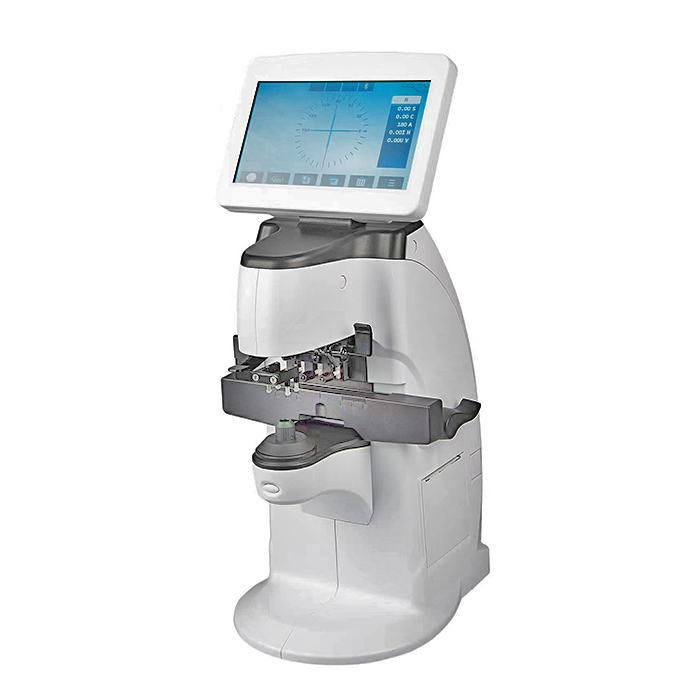

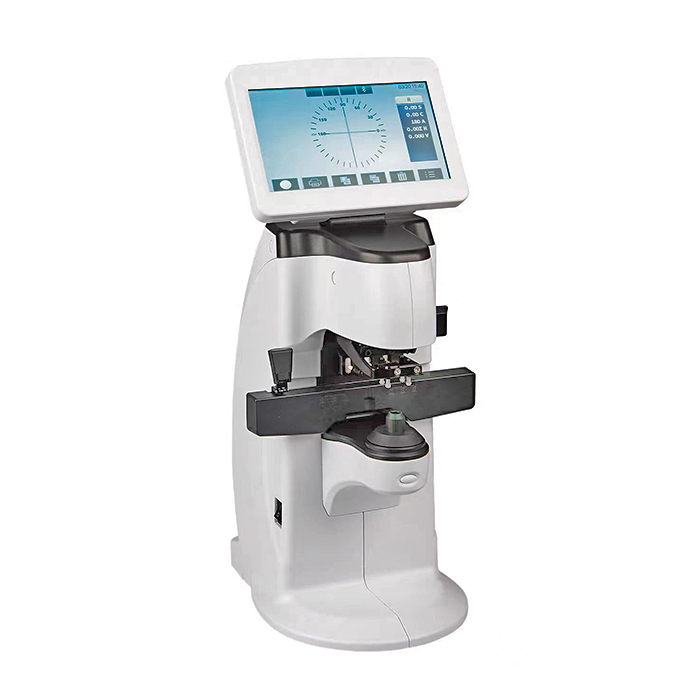

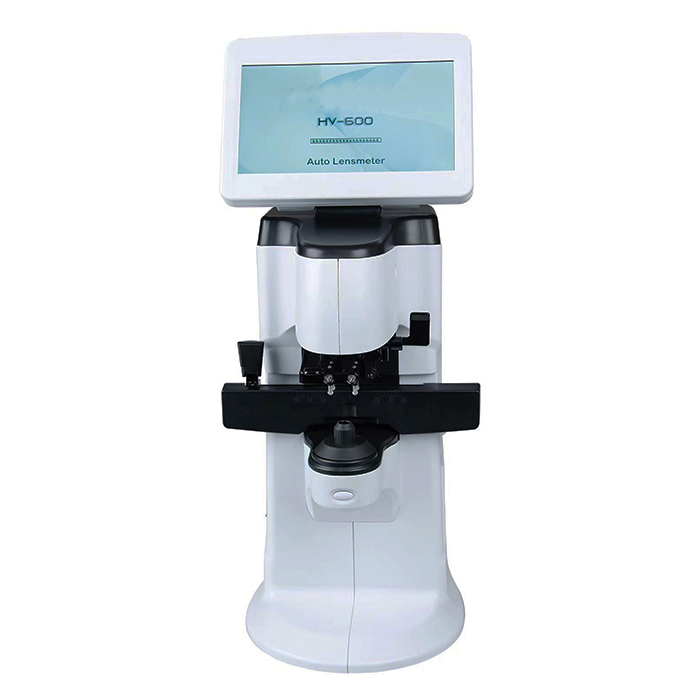

Auto lensmeter
HV-600
Features
1. | Accurately measuring the low-degree lens below +-0.12D. |
2. | Measuring the colored lens with 10% transmittance. |
3. | Displaying the PD PH PCL value in screen.Led green light |
4. | Optionally installing PD measuring instrument, UV measuring instrument and thermal printer. |
5. | User friendly interface with easy operation; fast measurement, high accuracy and good repetition. |
6 | 7" color and touch screen |
7 | bluetooth function |

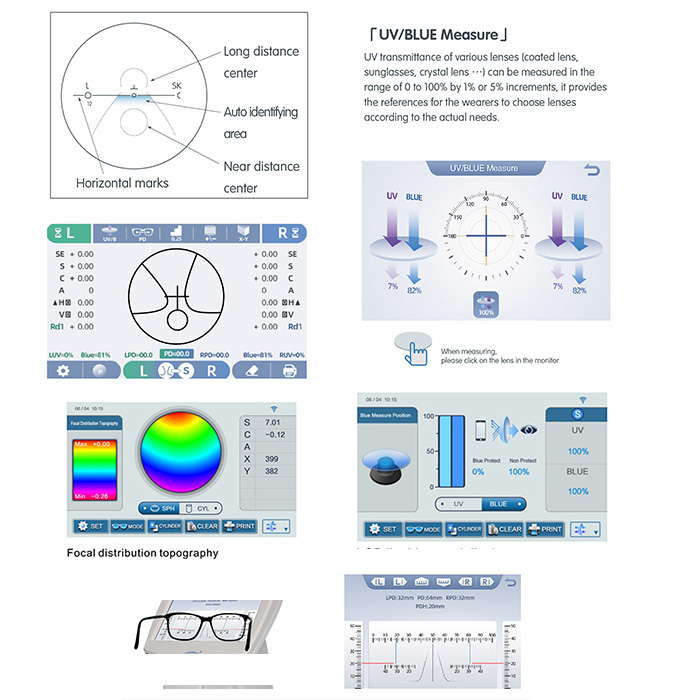

8 | Power topographic function |
9 | Visible light measurement |
10 | blue light transmittance |
Specifications
Sphere | -35.00D-+35.OOD |
Axis | 0°-180° (1°step) |
CYLINDER | 0 - ±10D 0.01/0.06/0.25D steps |
prism degree | 0 - 15 Δ 0.01Δ steps |
ADD | 0 - ±10D 0.01/0.06/0.25D steps |
Cylinder | +, +/-, - |
Prism | X-Y, Cartesian Coordinates H:I. O.V .U.D P-B: Polar Coordinates mm: mm expression |
Contact lens | Soft/hard |
Measuring Mode | Single/progressive/automatic recognition |
Diameter of Lens | φ20-φ100mm |
PD | 40~90mm, 0.5mm steps |
Speed of measurement | 0.1s |
Display | TFT LCD (7.0") 640*480 |
Printer | Thermal Printer |
Dimension | 180(L) * 255(W) * 455 (H) mm |
Package | 620(L) * 390(W) * 390 (H) mm |
Weight | About 12kgs |
Power Supply | 100~240V 50~60HZ |
