LP-6100
REDSUN
| Quantity: | |
|---|---|

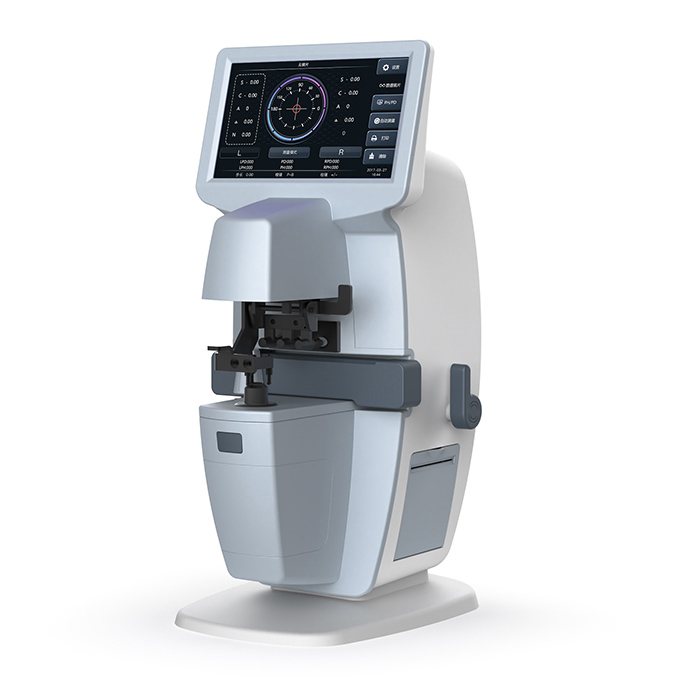

Auto lensmeter
LP-6100
Feature
1.Measurement of PD , PH, and PCL(progressive channel Length).
2.Measure progressive lens fast
3.The wavelength of UV and green light can be measured simultaneously ..
4. Better performance .Finer marking pens and lens holder . Magnetic and stable sliding nosepiece .
Technical Data
Sphere | --35.00D-+35.OOD |
Axis | 0°-180° (1°step) |
CYLINDER | 0 - ±10D 0.01/0.06/0.25D steps |
prism degree | 0 - 15 Δ 0.01Δ steps |
ADD | 0 - ±10D 0.01/0.06/0.25D steps |
Cylinder | +, +/-, - |
Prism | X-Y, Cartesian Coordinates H:I. O.V .U.D P-B: Polar Coordinates mm: mm expression |
Contact lens | Soft/hard |
Measuring Mode | Single/progressive/automatic recognition |
Diameter of Lens | φ10-φ100mm |
PD | 40~90mm, 0.5mm steps |
Speed of measurement | 0.1s |
Display | TFT LCD (7.0") 640*480 |
Printer | Thermal Printer |
Dimension | 180(L) * 255(W) * 455 (H) mm |
Package | 620(L) * 390(W) * 390 (H) mm |
Weight | About 12kgs |
Power Supply | 100~240V 50~60HZ |
