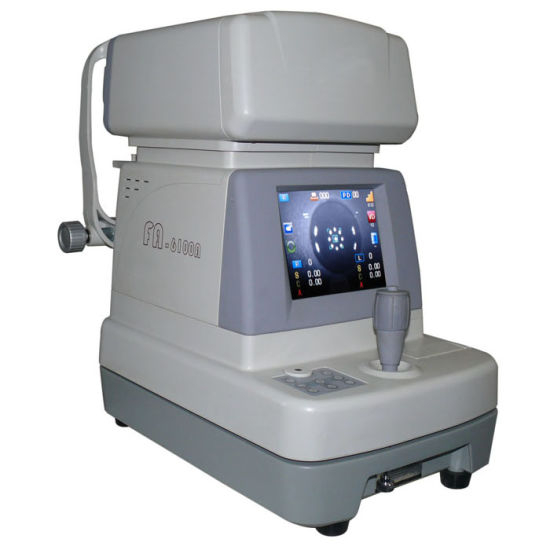

Auto refractometer
FA6100K With keratometer function .
FA6100A Without keratometer
Technical Data
Measured more quikly because the technology of built-in micro process and quick graphic process.
Quick measurement for diopter of min. Pupil size.
New design of colorful screen(5.7 TFT LCD).
Auto fog chart.
Pupil distance auto measured available.
Choice for vertex distance.
Measurement mode | K/R mode | Refractive and Keratometer measurement. | ||
REF mode | Refractive measurement | |||
KEF mode | Corneal curvature measurement | |||
Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0 mm | ||
Sphere | -20.00~+20.00D (0.12/0.25D step)(VD=12mm) | |||
Cylinder | 0.00~±10.00D (0.12/0.25D step) | |||
Axis | 1°~180°(1° step) | |||
Pupil Distance | 30~85 mm | |||
Min. pupil diameter measurable | 2.0mm | |||
Target | Automatic fogging target | |||
Corneal curvature measurement | Radius of curvature | 5~10mm(0.01mmstep) | ||
Corneal Refraction | 33.00~67.00D(0.12/0.25Dstep) | |||
Corneal Astigmatism | 0.00~-15.00D(0.12/0.25Dstep) | |||
Angle of corneal | 1°~180°(1°step) | |||
Corneal diameter | 2.0~12.00mm | |||
Hardware specification | Monitor | 5.7 inch Color LCD | ||
Printer | Fast thermal printer | |||
Power saving function | OFF, 5, 15 mins (selectable) | |||
Power supply | AC110~220 V,50/60HZ | |||
Dimensions/weight | 288(W)*500(D)*480(H)mm/14kg |
