RMK-700
REDSUN
9018500000
| Quantity: | |
|---|---|

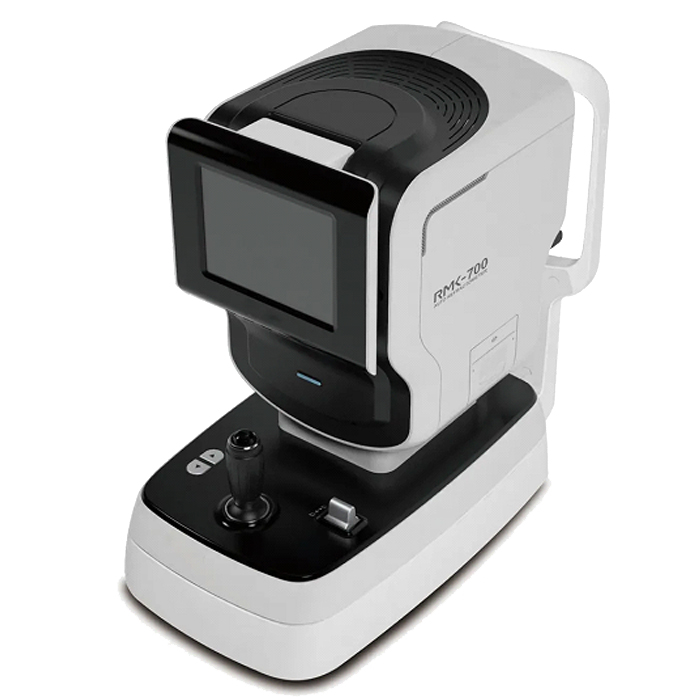

Auto refratometer
RMK-700
With function of REF, KER, K&R, CLBC, SIZE, canmeet all of your measurement requirement .
Small range 3D tracking , when eye come to Round circle , machine 3D tracking , auto measure , then move to another eye manual .
5.6" Touch screen .
Z-map measurement mode is much more vivid than traditional cornea measuring. By the result of outputing to PC , the patient can understand all the details of his vision .
Technical parameter | |
Vertex Distance: | 0.0mm,12.00mm,13.5mm,15.00mm |
Spherical Degree: | -20.00D~20.00D,(VD=12mm,step:0.12D/0.25D) |
Cylinder degree : | 0.00D~10.00D(step:0.12D/0.25D) |
Axis: | 1°~180°(step1°) |
Cylinder symbol: | -, +, MIX |
The degree of arming turning: | 90° |
Minimum pupil diameter: | 2.0mm |
Radius of curvature: | 6.5mm~9.4mm(step:0.02mm) |
Printer: | Thermal printer |
Monitors : | 6.4inch of TFT monitors |
Power supply: | AC220V, 50Hz |
Power: | 75VA |
size: | 506mm x 269mm x 477mm |
Weight: | About 21Kg |
